VSAT系統設備/ Sea Tel Arbitrator 2014
The Sea Tel Arbitrator is capable of switching between two antenna systems when one has encountered blockage, sudden loss of AGC, or power failure.
This new Arbitrator incorporates features such as GPS pass-through, out-of-band management support, OpenAmip and ABS protocol, and TCP/IP switching. It utilizes a smart Graphical User Interface (GUI) for easy communication and viewing of current system status.
產品概況資料下載產品規格
Features and Benefits
? Easy to configure
? Supports automatic switching based on preconfigured blockage zones in the DAC’s
? Automatically switches IP packet path between the DAC and satellite modem
? Supports the use of Out of Band Management (OBM).
? GPS data pass through from selected source.
? GPS source can be arbitrated along with RF path.
? Supports all current Sea Tel VSAT antennas.
? Warranty: 2 year parts, 1 year labor, limited warranty.
? Supports standard web browsers: configure using Internet Explorer, Firefox, and Safari.
? Command line interfaces available via serial and telnet ports.

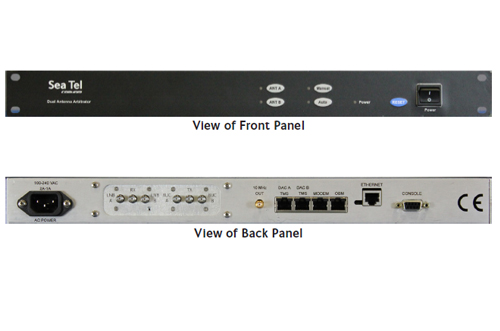

? Front panel push buttons w/ LED indicators.
? Standard Configuration keeps secondary antenna in hot standby for fast switching.
RF power limits:
? 25 Watts Max standard connectors
? 100 Watts Max (high power connector)
Available Options:
? High Power TX connectors
? 10 MHz reference to standby BUC
Connector Types:
? Modem, DAC A, DAC B, and OBM: RJ45 connectors
? 10T Ethernet: RJ45 connector
? RX and TX RF: SMA connectors
AC input: 100-240 VAC @ 50/60 Hz.
Operating temperature: 0 degrees C to +40 degrees C.
Regulatory Approvals:
? CE
? RoHS lead-free compliant
? EN 60945
? EN 60950
? R&TTE
Physical:
? 1U x 19 inches
? 3 Lbs.
? Rack mountable
